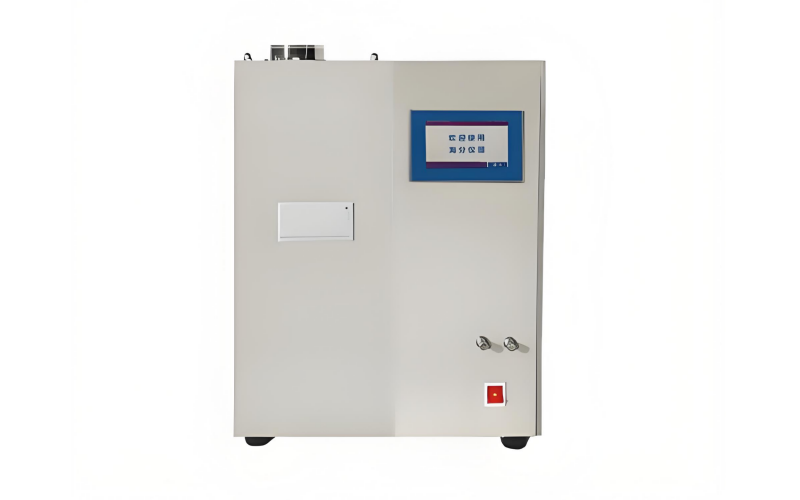

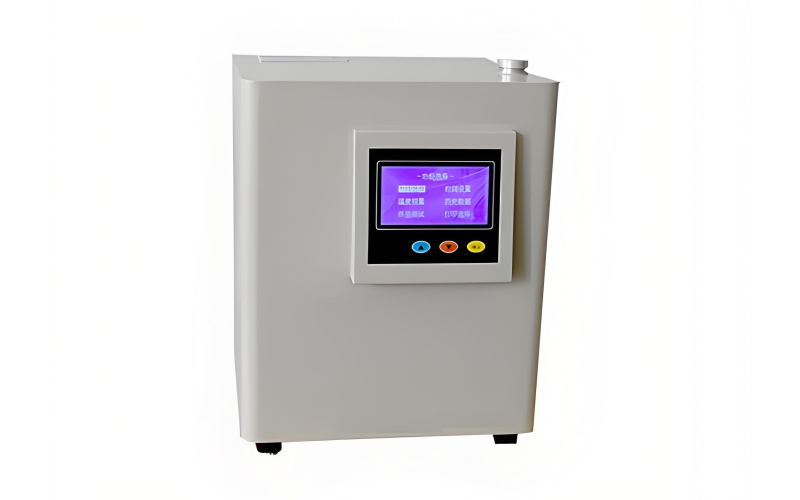

MT-P600 Fully Automatic Lubricants Pour Point Analyzer

-Reliable and Standard-Compliant Testing for Petroleum and Lubricating Products

Introduction:

The MT-P600 is a fully automatic pour point analyzer designed for the accurate determination of the pour point of petroleum products, including lubricants, plasticizers, and other oil-based substances. The device supports multiple national and international standards such as GB/T510, GB/T3535, GB/T1663-1982, and SY/T0541-2009.

Utilizing advanced refrigeration and temperature control technology, the MT-P600 provides high repeatability and user-friendly automation for laboratories, refineries, and research institutions focused on fuel and oil quality assurance.

Key Standards Supported：

• GB/T510 – Pour point determination of petroleum products

• GB/T3535 – Consistent with ISO 3016

• GB/T1663-1982 – Solidification point determination of plasticizers

• SY/T0541-2009 – Pour point measurement for petroleum drilling fluids

Features:

1. Color Chinese and English touch screen display, PID self-tuning temperature control technology, temperature control accuracy ±0.1℃.

2. The main control component composed of multiple single-chip microcomputers is used for automatic cooling, constant temperature, detection, and printing results.

3. The compressor refrigeration system ensures that the required refrigeration depth is achieved, and there is no need to connect to circulating water refrigeration.

4. The dry trap-shaped cold bath box is used, which has small hysteresis, fast cooling, and does not require other cooling media, which is convenient for use and maintenance.

5. High-performance infrared detection technology is used, with high detection sensitivity, strong reliability, and accurate judgment.

6. Automatically control the temperature difference between the cooling medium and the tested sample to ensure that the cooling speed is controlled and uniform and stable.

7. The built-in micro heater allows the sample to heat up quickly without heating the temperature of the cooling medium too high.

8. The instrument has a built-in micro thermal printer, and the experimental results are automatically printed. Save 500 results.

9. Fully automatic detection, no manual operation is required, and cooling, tilting, detection, and printing results are automatically completed.

Applications:

The MT-P600 analyzer is widely used in petrochemical laboratories, lubricant manufacturing facilities, and oil field service companies. Determining pour point is critical for assessing the flow characteristics of oil products under low temperature conditions, which is essential for transportation and operational safety in cold climates.
