​MT-Z601 Gasoline Vacuum Distillation Analyzer | Precise Petroleum Product Testing Instrument

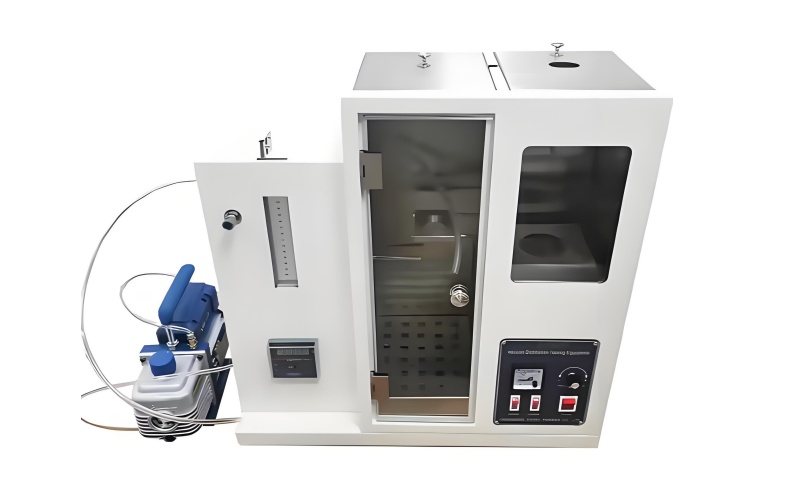

MT-Z601 ASTM D86 Gasoline Vacuum Distillation Analyzer

Overview:

The Gasoline Vacuum Distillation Analyzer is a cutting-edge instrument designed for precise determination of gasoline distillation characteristics under vacuum conditions. Compliant with international standards ASTM D5236 and ASTM D86, it provides reliable and repeatable results critical for quality control and research.

Applications
Ideal for petroleum refineries, quality control laboratories, and research institutions, this analyzer enables detailed analysis of gasoline and other light petroleum products to ensure compliance with industry standards and optimize product performance.

Features:

1. Our distillation analyzer consists of a distillation flask heating furnace, a heating power regulator, a receiver and its air bath temperature control system, a vacuum system, a vacuum pressure gauge, a lighting system, a heating furnace cooling device, and other parts.

2. A high-precision digital vacuum pressure gauge is used to replace the U-tube pressure gauge to display the residual pressure value of the vacuum system in digital form, eliminating the need for mercury filling, and the reading is intuitive and convenient.

3. The high-precision digital vacuum pressure gauge has two display units, which can be switched between mmHg and kPa units by pressing a button.

4. A high-quality vacuum pump is used, and the vacuum extraction is fast, which meets the requirements of the SH/TO165-92 "High Vacuum Distillation Determination Method for Petroleum Products in the High Boiling Point Range" test and ASTM D86 standard.

5. This distillation analyzer adopts a quartz tube electric heating furnace which is durable, has a long life, and the heating power is continuously adjustable and easy to use.

6. The air bath is constant temperature and equipped with a lighting lamp, which makes it easy to observe the distilled product and accurate reading.

Technical Parameters:

1. Working power: AC 220V, 50Hz

2. Heating power: distillation flask heater: 1000W, receiver cylinder heater: 350W;

3. Vacuum measurement range: 0~775mmHg±0.2 mmHg (0 kPa~103.3 kPa±0.1 kPa).

4. Distillation flask heating furnace power: 0~1000 W continuously adjustable.

5. Receiver cylinder air bath temperature controls point: room temperature~100℃ continuously adjustable.

6. Air bath temperature sensor: Pt100 platinum resistance.

7. Air bath temperature control method: digital display temperature control meter automatic temperature control.

8. Temperature controls accuracy: set temperature±1℃.

9. Maximum residual pressure of vacuum pump: ≤2mmHg.

10. Instrument working conditions: ambient temperature: 5~35℃.

11. Relative humidity: < 85%.
