MT-MC3000 Automatic Micro Coal Calorimeter

MT-MC3000 Automatic Micro Coal Calorimeter

Description：

Suitable for measuring the calorific value of solid and liquid combustible materials such as anthracite, bituminous coal, lignite, heavy oil, and biomass fuels.

Features：

1.Using a modular 24-bit AD temperature acquisition circuit to ensure a temperature measurement accuracy of one ten thousandth

2.Using embedded ARM as the main control chip, equipped with a 7-inch true color touch LCD screen and mouse device, the operation is simpler and more flexible. The direct human-computer interaction method makes it more convenient to use.

3.Equipped with the computer’s powerful data processing functions and strong scalability, it realizes the perfect expression of the instrument and makes querying and printing of historical data simple and easy.

4.The test process is fully automated, and all operations can be completed with one click, including automatic stirring, automatic ignition, and automatic printing of high and low calorific values.

5.Using power inverter and purification technology and equipped with water purification device, system detection is not affected by power supply voltage, frequency and water quality. Rich data processing functions allow users to easily query historical test data, current day data, parallel sample data, etc.

Technical Parameters:

1.Heat capacity of the instrument: about 10500J/K

2.Stability: 0.2%

3.Oxygen bomb pressure resistance: 20MPa

4.Capacity of inner and outer cylinders: 2.3L 51L

5.Ambient temperature for temperature measurement device: 0-40℃

6.Resolution: 0.0001℃

7.Accuracy: Relative standard deviation of repeatability ≤ 0.1%, heat capacity change within one year ≤ 0.20%

8.Accuracy: meets the above national standard requirements

9.Test time: a single test takes about 15 minutes

10.Ignition mode: automatic ignition

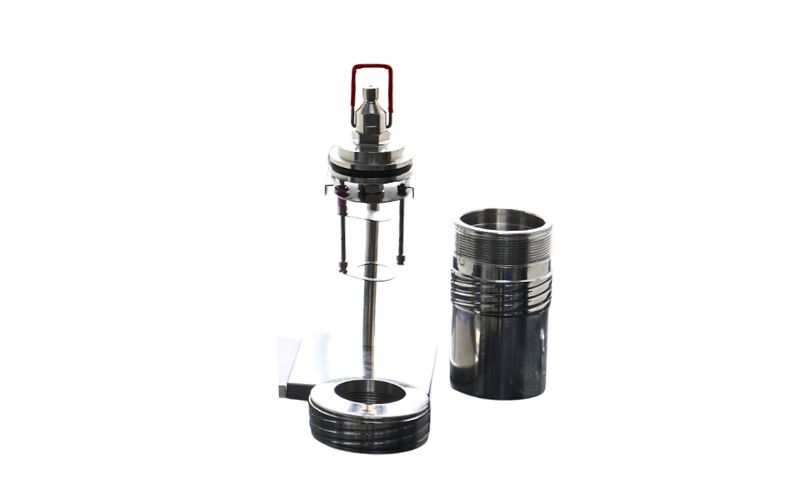

11.Oxygen bomb material: high-quality nickel-chromium-molybdenum alloy, pressure resistance 20MPa, working pressure: 2.8~3.0Mpa

12.Sample crucible: The crucible can be made of quartz, ceramic or nickel-chromium according to the sample measured by the customer.

13.Power supply voltage: 220V±10% 50Hz

14.Power: 200W
