adaptive PID control algorithm
fully automatic type
automatic correction of system deviation
for lubricants,heavy oils storage capacity 10,000
Safe and gas-free, PT alloy electric heating wire ignition method

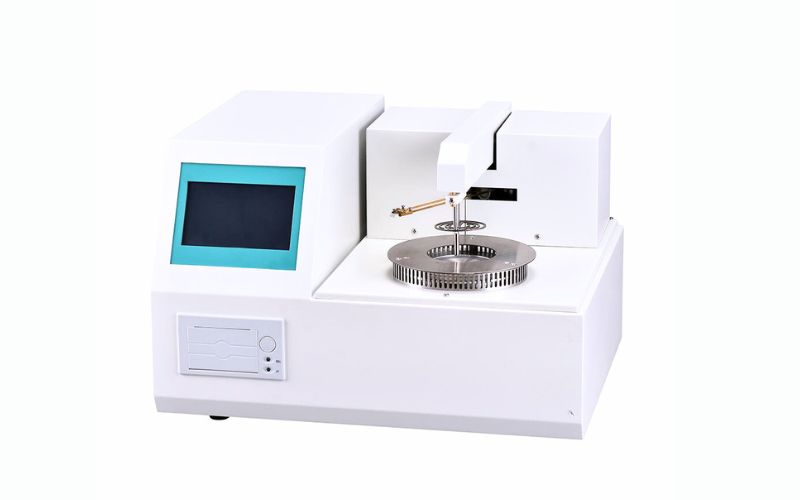

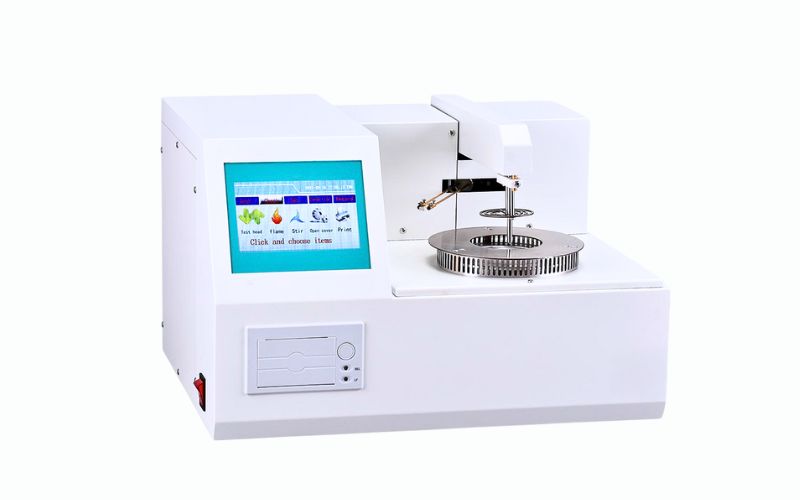

MT-K600 Automatic Open Cup Oil Flash Point Tester for Lubricants
Description：
The MT-K600 Automatic Open Cup Flash Point Analyzer is designed to determine the flash point of petroleum products according to the Cleveland Open Cup method. It strictly complies with ASTM D92, GB/T 3536, and ISO 2592 standards, ensuring reliable and repeatable testing results.
This instrument features a fully automated heating, ignition, detection, and cooling process, significantly improving efficiency and minimizing operator error. The large touchscreen interface provides intuitive control and real-time temperature display.
Flash point testing of lubricating oils, heavy fuel oils, diesel, and other petroleum-based liquids.
Widely used in petrochemical, refining, and quality control laboratories.
Key Features:
Standards: ASTM D92, GB/T 3536, ISO 2592
Heating Mode: Electric heating with adjustable ramp rate
Ignition Mode: Electronic or gas ignition
Flash Point Detection: Automatic detection with precise thermocouple sensing
Display: 7-inch TFT touchscreen for test status, temperature, and data logging
Cooling: Automatic cooling after test completion
Data Export: USB interface for result output and software integration
Technical Parameters:
Display | 65K(resolution 800*600) color touch screen |
Measurement method | Thermocouple differential detection |
Measuring range | Room temperature to 400 ° C |
Repeatability | ±2℃ |
Printer | High speed thermal printer, 56 mm paper width |
Ignition method | Automatic electronic ignition |
Temperature detection | Imported precision platinum resistance |
Self-test function | Printer, igniter, solenoid valve, detection arm lift, ignition rod sweep, etc. |
Environment | Temperature:10℃-45℃, humidity: 30%-80% |
Dimensions | 450*280*290mm |
Power source | AC220V±10% |
Weight | about 15 kg |
