controlled by a single-chip microcomputer
PID self-tuning temperature control technology
with a micro thermal printer
1,000 results storage function

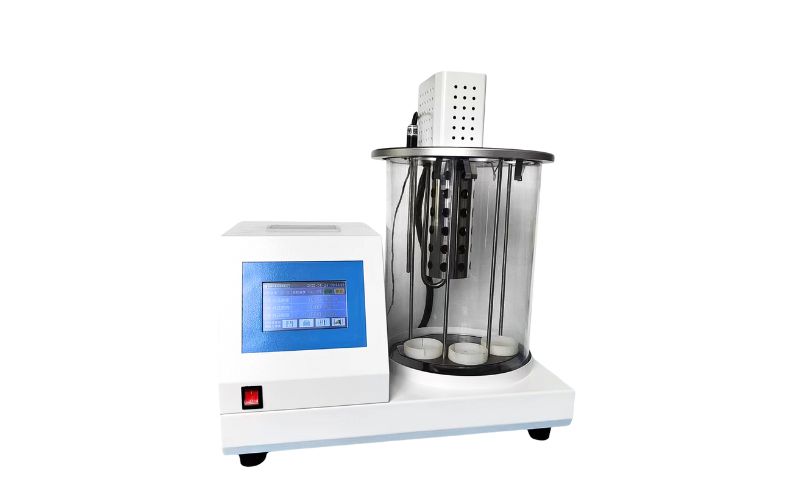

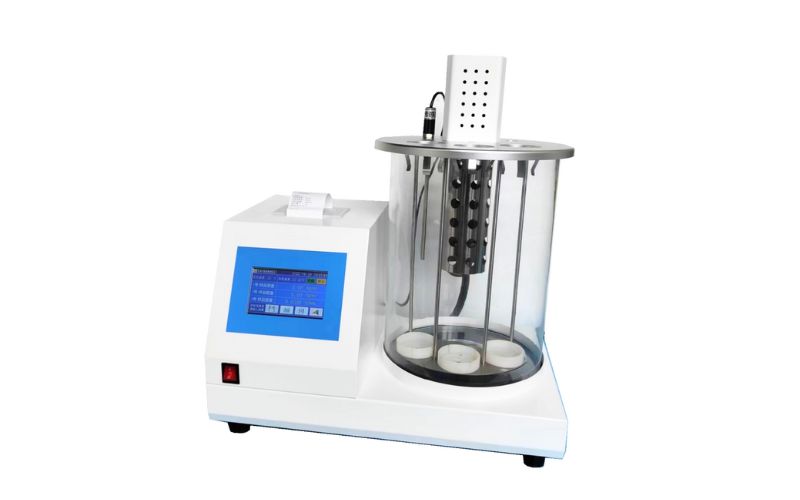

MT-D800 Automatic Lubricants Oil Densimeter - 3 or holes
Description：
This oil densimeter meets standards GB/T 1884-2000 and ASTM D1298. This standard applies to the determination of Reid vapor which pressure does not exceed 180kpa crude oil, petroleum products and petroleum products with non-petroleum products mixture. Densitometry is best suitable for the determination of the density of transparent, low-viscousliquids,also suitable for viscous liquids, but needs to make the oil densimeter stay long enough to reach balanced state.
Features：
1.This oil densimeter is controlled by a single-chip microcomputer and displayed on a color LCD screen in Chinese and English.
2.It uses PID self-tuning temperature control technology, with a fast heating speed and a temperature control accuracy of 0.02 degrees.
3.It is equipped with a micro thermal printer to print the measurement results at any time.

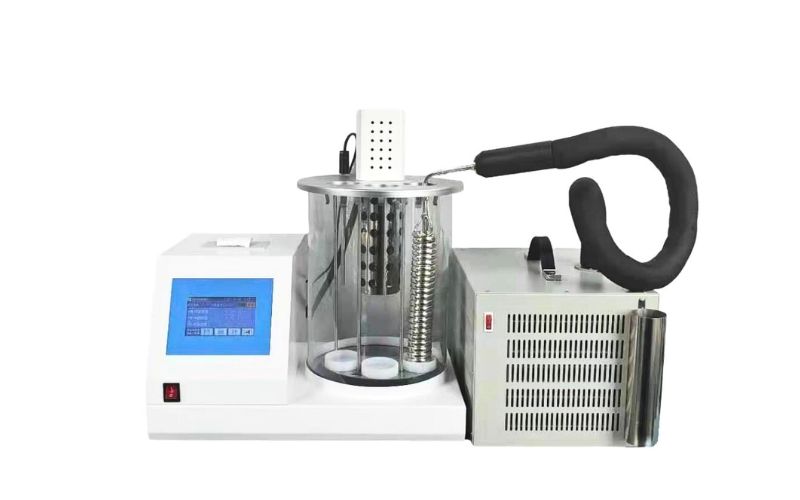

4.For the measurement of the density of petroleum products at minus 20 degrees, a refrigeration circulation system is required.
5. Our oil densimeter with 1,000 results storage function, historical records can be queried.
Technical Parameters:
Display | Color LCD display |
Temperature controller | room temperature – 100℃ -20℃ – 100℃ (low temperature type) |
Resolution | 0.01℃ |
Temperature control accuracy | ±0.02℃ |
Number of experimental cups | 3 holes or 4 holes |
Ambient temperature | -10℃-50℃ |
Relative humidity | ≤85%RH |
Dimension | 530×380×550mm |
Weight | About 15kg |
Power supply | AC220V+/-20%,50Hz+/-10% |
