4 sample testing holes
0.5～20000mm2/s
0.1S-999.9S
double-layer constant temperature glass bathtub
300 test results
Lower consumption thermal printer

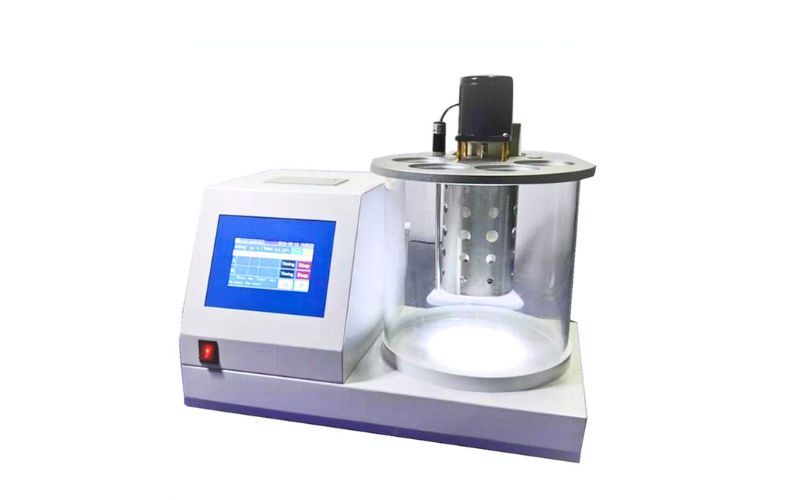

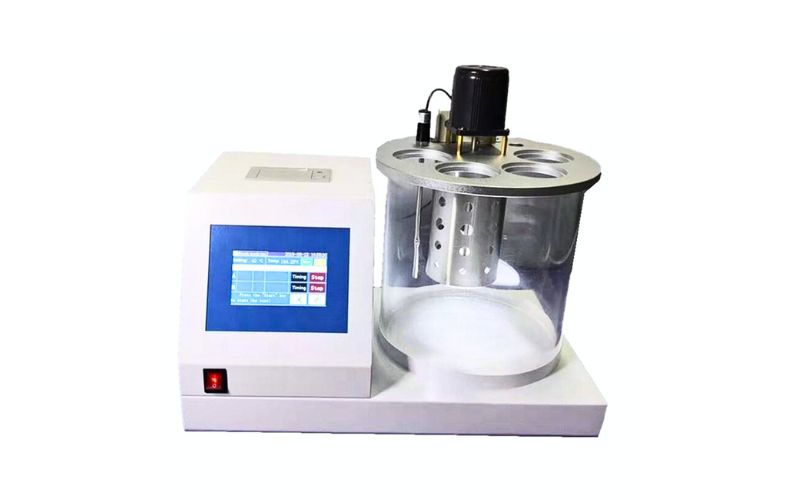

MT-V800 Automatic Kinematic Viscosity Analyzer for Petroleum Oils (ASTM D445 Compliant)
Applications：
· Engine oils
· Hydraulic fluids
· Gear oils
· Diesel and fuel oils
· Base oils and synthetic lubricants
Description：
Our Kinematic Viscosity Analyzer is engineered to deliver precise and repeatable viscosity measurements for petroleum-based oils in accordance with ASTM D445 and GB/T 265 standards. Designed for use in laboratories, refineries, and research institutions, this instrument provides a fast, reliable, and automated solution for determining kinematic viscosity at specified temperatures.
Features:
· Compliance: Fully compliant with ASTM D445 and ISO 3104 standards
· Automation: Automated capillary viscometer system with sample loading, timing, and cleaning
· Temperature Control: High-precision constant temperature bath (±0.01°C) at 40°C and 100°C
· Detection System: Infrared or optical sensors for accurate flow time measurement
· User Interface: Intuitive touchscreen with data logging and USB export
· Safety: Built-in over-temperature and overpressure protection
· Viscosity Range: 1 mm²/s to 2000 mm²/s (expandable with optional capillaries)
Technical Parameters:
Performance Standard | GB265-88, GB1814,ASTM D445,IP71, etc. |
Capillary Viscometer | Complies with SH/T0173-92 "Technical Requirements for Glass Capillary Viscometer" Complies with JJG155 "Verification Procedures for Working Capillary Viscometer" |
Method of Display: | 320X240 dot matrix LCD display |
Temperature Control Range: | Room temperature ~ 100℃ arbitrary setting |
Testing Range: | Kinematic viscosity measurement range: 0.5～20000mm2/s Dynamic viscosity measurement range: 0.3～40000mPa.s |
Temperature Control Accuracy: | ±0.1℃/±0.01℃ for option |
Timing Accuracy: | ±0.1S |
Timing Range: | 0.1S-999.9S |
Constant Temperature Bathtub： | 250×250mm double layer |
Printer: | Lower consumption thermal printer, with 56 millimeter-wide printing paper |
Temperature Testing Components: | Precision PT100 platinum resistor |
Max Power | 1800W |
Stirring Speed: | 1520 Rounds/Min |
Sample testing holes: | 4 |
Working Environment: | Temperature :room~45℃, humidity: <85% |
Power Supply | AC220V±10% 50Hz |
Dimension(largest): | 560*370*520 (L*W*H) |
Weight: | 20Kg |
