0-50ppm,0-200ppm and 0-800ppm testing range for option

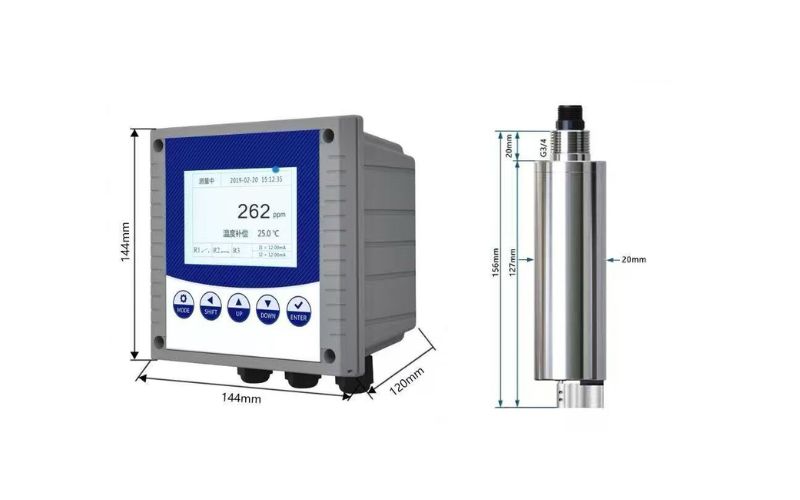

Online Oil in Water Monitor (Infrared Fluorescence / UV)
Overview
The Matictest Online Oil in Water Monitor is a high-precision instrument designed to continuously detect oil content in industrial wastewater, discharge water, and cooling water systems. With support for UV fluorescence and IR absorption methods, it delivers reliable hydrocarbon concentration measurements in real-time.
Widely used in petrochemical, marine, power generation, metallurgy, and environmental protection industries, this monitor helps ensure compliance with discharge regulations (e.g. EPA, GB/T 16488, ISO 9377-2).
Key Features
Real-Time Monitoring: Continuous measurement with automatic data logging
Multiple Detection Methods: Supports UV fluorescence and infrared absorption
High Sensitivity: Detection limit as low as 0.05 mg/L
Automatic Self-Cleaning: Reduces maintenance frequency
Remote Access & Alarms: Real-time alerts via Modbus/4-20mA
Rugged Design: Waterproof, corrosion-resistant enclosure (IP65 or higher)
Flexible Installation: Suitable for bypass, direct immersion, or pipeline
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Method | UV Fluorescence / Infrared Absorption |
| Measurement Range | 0.05 – 200 mg/L (extendable) |
| Detection Limit | ≤ 0.05 mg/L |
| Accuracy | ≤ ±2% F.S. |
| Response Time | ≤ 10 seconds |
| Display | 7” industrial-grade touchscreen |
| Output Signal | 4–20 mA / RS485 / Modbus |
| Self-Cleaning System | Yes |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Working Temperature | 0 – 50°C |
| Protection Grade | IP65 / optional IP67 |
| Mounting Options | Wall-mounted / Rack / Customizable |
Applications
Industrial wastewater discharge monitoring
Power plant cooling water system
Offshore platform oily water separation
Refinery effluent compliance
Environmental protection and municipal wastewater treatment
Why Choose Matictest Oil in Water Monitor?
Environmental regulations are tightening globally. Whether you're in oil refining, steelmaking, shipping, or environmental services, it's critical to monitor trace oil levels in water discharge. Matictest’s instrument provides lab-grade accuracy in a durable, industrial-ready system.
