2 baths 8 holes

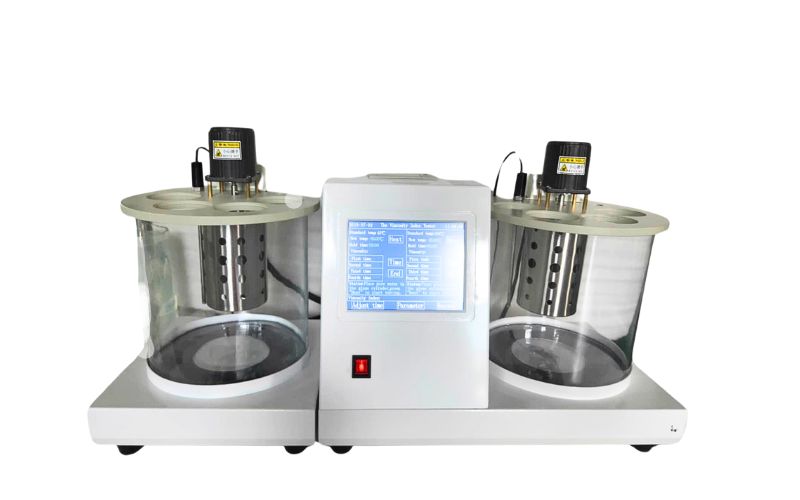

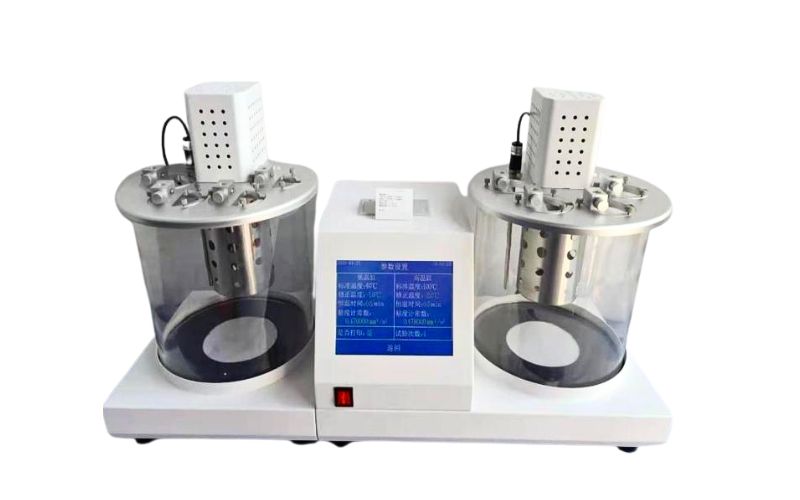

MT-V800D Two bath Automatic Kinematic Viscometer for Petroleum Products
Description:
The Matictest Kinematic Viscometer is designed for precise measurement of the kinematic viscosity of liquid petroleum products in compliance with ASTM D445, GB/T 265, and ISO 3104 standards. It uses capillary viscometry with automatic timing and temperature control to ensure highly accurate and repeatable results.
Ideal for use in oil refineries, QC laboratories, and research institutions, this system is optimized for both high-throughput testing and demanding accuracy requirements.
Applications:
Lubricating oil quality control
Base oil formulation
Transmission and hydraulic fluid testing
Academic and industrial R&D
Petrochemical product classification
Features:
1. Our Kinematic viscometer adopts a color Chinese LCD touch screen display to display the instrument's temperature, time, parameters and other working conditions in a timely manner.
2. The design of 8 test holes of kinematic viscometer, modular technology, can measure both low and high viscosity ranges.
3. It adopts a new temperature sensor and temperature control algorithm, with a display resolution of 0.01℃ and a temperature control accuracy of ±0.02℃.
4. The instrument automatically calculates the kinematic viscosity value and viscosity index of the product, and automatically prints and stores the measurement results.
5. The glass double cylinder design can simultaneously perform kinematic viscosity tests under high and low temperature conditions, and automatically calculate and print the viscosity index value of the product.
6. Timing from 0.1 seconds to 999.9 seconds, the temperature range of room temperature to 100.00 degrees can be set arbitrarily.
7. The heater and other components are made of stainless steel, which is corrosion-resistant, durable and easy to observe.
8. The capillary meter card adopts a three-point vertical type, which is flexible and convenient to operate and reliable to clamp.
Compliance Standards
ASTM D445 – Standard Test Method for Kinematic Viscosity
ISO 3104 – International viscosity measurement method
GB/T 265 – Chinese national standard for petroleum viscosity
Technical Parameters:
| Name | Kinematic Viscometer |
|---|---|
Performance Standard | GB265-88, GB1814,ASTM D445,IP71, etc. |
Method of Display: | 8-inch color LCD display |
Temperature Control Range: | Room temperature ~ 100℃ arbitrary setting |
Temperature Control Accuracy: | ±0.01℃ |
Timing Accuracy: | ±0.1S |
Timing Range: | 0.1S-999.9S |
Constant Temperature Bathtub： | 250×250mm double layer |
Printer: | Lower consumption thermal printer, with 56 millimeter-wide printing paper |
Temperature Testing Components: | Precision PT100 platinum resistor |
Stirring Speed: | 1550 Rounds/Min |
Sample testing holes: | 4 |
Working Environment: | Temperature :room~45℃, humidity: <85% |
Power Supply | AC220V±10% 50Hz |
Dimension(largest): | 560*370*520 (L*W*H) |
Weight: | 25Kg |
Why Choose Matictest Kinematic Viscometer?
High stability and repeatability with intelligent automation
Reduces manual labor and human error
Fast test cycles, ideal for batch processing
Robust construction suitable for 24/7 laboratory use
Optional PC software for data management and traceability
Ordering Information
Matictest offers models with dual-bath, four-tube, and ultra-low/high viscosity testing capability. Contact our technical sales team at Evie@matictest.com for detailed specifications or quotation.
