EVA TPT cutting equipment
Cutting accuracy: ±1mm
‘一’ ‘U’ ‘O’ Punching method
Circular tool + fixed tool method

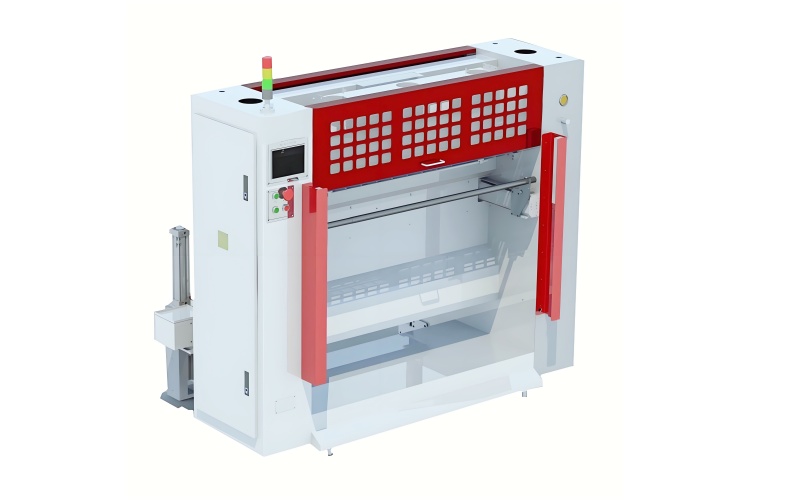

MT-ET2500 Fully Automatic EVA/TPT Cutting Equipment for Solar Panel Packaging
The Fully Automatic EVA/TPT Cutting Machine is specifically developed for solar module packaging lines. This machine enables high-speed and precise cutting of EVA (ethylene-vinyl acetate) and TPT (Tedlar-polyester-Tedlar) films used in the encapsulation process. With automatic feeding and servo-driven control, it significantly improves production efficiency and consistency while reducing manual intervention.
This equipment is ideally suited for photovoltaic manufacturers who require accurate, efficient, and repeatable cutting of encapsulation materials during the solar panel lamination process.
Features:
1. Automatically complete the material transfer of fixed length
2. Automatic punching (opening)
3. Pallet handling, etc. according to system parameter settings
4. Accuracy and efficiency of the process
5. This EVA TPT cutting equipment is mainly composed of touch human-machine interface, PLC, servo motor, pneumatic actuator, digital sensor, etc.
6. Stable operation and high degree of automation
Technical Parameters:
Name | Fully automatic EVA TPT cutting equipment | |
Cutting accuracy | EVA | ±2mm |
TPT | ±1mm | |
Feeding method | EVA | Servo electric receiving rack |
TPT | Sloped receiving table | |
Maximum cutting width | 1200mm | |
Cutting length | 20-2200mm (adjustable) | |
Maximum rolling diameter | 400mm | |
Maximum rolling weight | 250KG | |
Loading method | Pneumatic assistance (one person can feed independently) | |
Loading time | <5 minutes (depending on the operator's proficiency) | |
Production cycle | ≤6S/sheet (including punching time) | |
Punching method | Pneumatic die cutting (can be like ‘一’ ‘U’ ‘O’) | |
Cutting method | Circular tool + fixed tool method | |
Mold replacement time | < 60S | |
Control mode | Mitsubishi PLC | |
Operation interface | Mitsubishi HMI | |
Feed drive configuration | Mitsubishi servo motor | |
Material surface electrostatic treatment | Ion blower | |
Safety protection | Panasonic area sensor | |
Alarm system | Three-color warning light (with sound alarm) | |
Equipment password protection | Multi-level operation permission password setting | |
Equipment software upgrade and transformation | Remote maintenance, free upgrade | |
Dimension adjustment method | Centralized number management | |
Troubleshooting and technical support | 24-hour service, 1-hour response, general faults are eliminated within 24 hours | |
Spare parts supply | Free of charge during the warranty period, and at cost outside the warranty period | |
Power supply | 110V/220V 50HZ/60HZ | |
Power consumption | 5KW | |
Air pressure | 0.5-0.8MP | |
Weight | 1200kg | |
Equipment size | 2090*1290*2110mm(L*W*H) | |
