Non-contact processing
182 different sizes
Support for trapezoidal cutting and splicing cutting

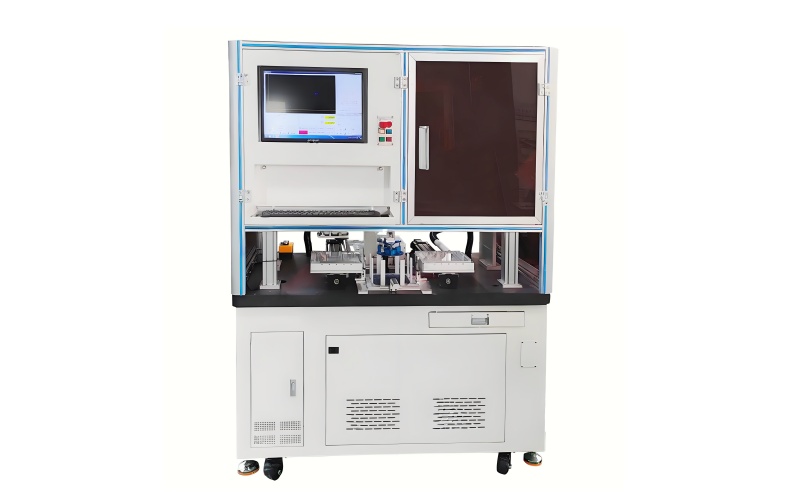

MT-FLC3000 Fully Automatic Fiber Laser Cutting Machine
- Automatic sampling
Description:
Our solar cell fiber laser cutting machine is a high-precision processing equipment that uses the ultrafast pulse laser beam generated by the fiber laser to efficiently cut, cut or edge process single crystal or polycrystalline silicon solar cells through precise control by a numerical control system. Its core advantage lies in non-contact processing, with a very small heat affected zone, which can avoid material damage. At the same time, it has the characteristics of fast slicing speed and smooth cutting, and is compatible with mainstream battery processes such as PERC, TOPCon, HJT, etc. This device can significantly improve the efficiency and yield of battery cell slicing, and is a key equipment in the production process of photovoltaic modules.
Advantages:
Support cutting of irregular battery cells, support for 182 different sizes of internal modification applications, support for trapezoidal cutting and splicing cutting.
Technical Parameters:
Equipment name | Fiber laser cutting machine |
Product model | MT-FLC3000 |
laser device | 1064nm fiber laser |
Beam Quality | 1.3 |
table stroke | 800mm*300mm |
Maximum cutting speed | 600mm/s |
Maximum idle speed | 600mm/s |
Slice accuracy | ≤0.02mm |
Automatic positioning accuracy | ≤±0.05mm |
Cooling system | forced air cooling |
Line width | ≤0.03mm |
Slice structure | Dual station scribing |
Dicing table top | Glass countertop |
Number of feeding trays | 2/dual station cutting |
Cell/wafer size | 156x156-210x210 whole piece, non-standard piece, rice grain piece, missing corner piece |
Compressed air | 0.5-0.8MPa |
Input voltage | 220VAC/50HZ |
Overall power Consumption | 1KW |
Equipment size | 1200mm*850mm*1400mm |
weight | 350KG |
