Photovoltaic testing
Pre - and post lamination component testing
20/24/36 million pixels for option
Multi camera direct shooting
MT-EL2400 Solar Cell EL Detection PV Photovoltaic Tester
Features:
1. Our photovoltaic tester adopts multi camera direct shooting to ensure the imaging effect.
2. Close type optical route design, to guarantee the steady running of equipment better adapt to different environment.
3. Total English screen interface,can automatically or manually scan graphical coding, and proceed to save files.

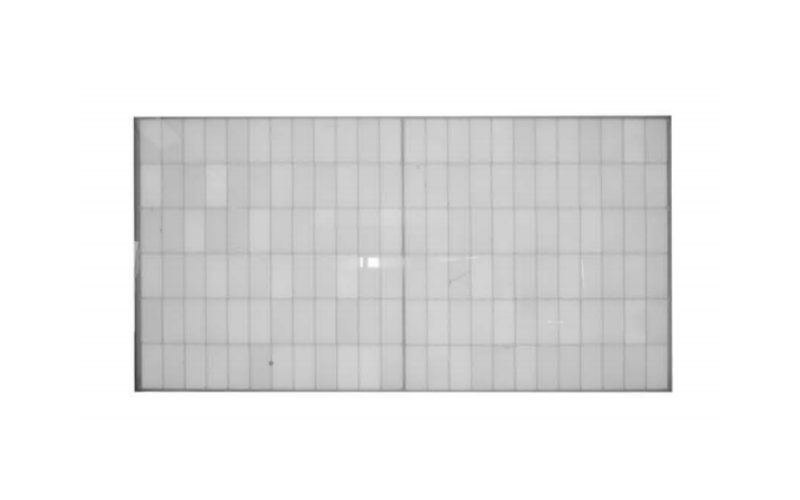

4. Enlarged scanning pictures can show the detail and make it easy to decide.
Technical Parameters:
Technical Parameters | |
Model | MT-EL2400 |
Name | Solar Cell EL Detection PV Photovoltaic Tester |
Resolution | 20/24/36 million pixels for option |
Shooting mode | Single/Dual/Multi Camera Mode |
Sensitivity | Can detect crack width less than 0.03mm |
Applicable process | Pre - and post lamination component testing |
Image acquisition tine | 1 ~60s(adjustable) |
Power supply current range | 0-30A continuously adjustable |
Power supply voltage range | Continuously adjustable |
Effective test area | 2600*1500mm |
Power | 220V 50HZ |
Machine Size | 2900x1940x1155MM |
