Long pulse width 10-150ms
Adopts upper light design

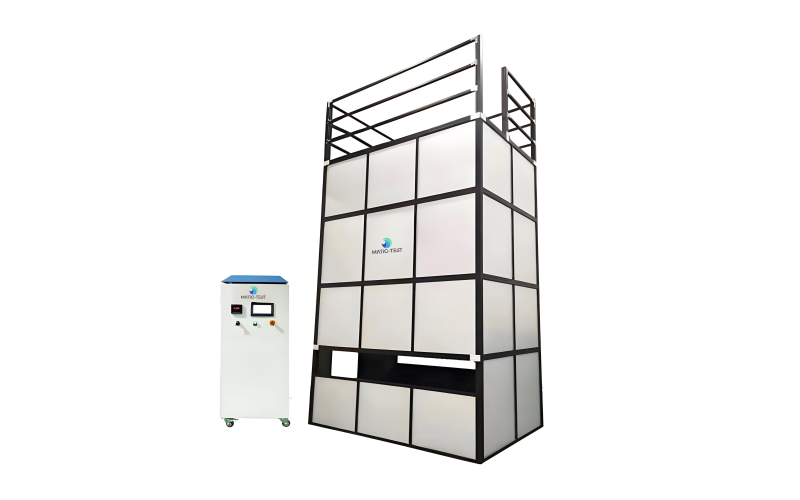

Upper Lighting Component Solar IV Flasher
MT-ULC1800
Features:
1. Long pulse width 10-150ms, adjustable flash pulse.
2.This solar IV flasher adopts upper light design and professional filters, the spectral matching is more stable.
3. Using imported pulse xenon lamps to ensure the stability of the test light source.
4. Four line measurement, 16 bit 4-channel high-speed synchronous acquisition card, 8000 data acquisition points, 10 parameters displays, and tabular and graphical display of measurement parameters.
Technical Parameters:
Technical Parameters | |
Model | MT-ULC1800 |
Name | Upper Lighting Component Solar IV Flasher |
Lamp spectrum | Meets IEC60904-9 requirements (A+ class or A+A+A+ for option) |
Light intensity | 20 ~ 120mW/cm2(adjustable) |
Light intensity non-uniformity | <±1% A+ |
Instability degree of irradiation | <±0.5% A+ |
Test result consistency | <±0.5% |
Test error of electrical properties | <±1% |
Single flash time | 10~150ms(Optional) |
Effective test range | 2600*1600MM |
Power Supply | 220V 50HZ |
Machine size | 3080x2520x5460MM |
