real-time monitor
1500V
1500A
Description:

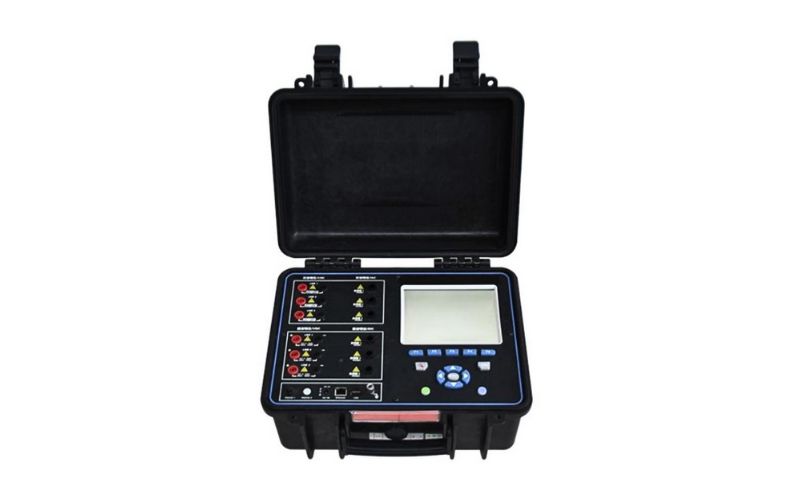

The MT-I200 inverter efficiency tester is an electrical performance test device designed specifically for photovoltaic power stations. It can monitor the power of the power station in real time. Through current clamp sampling and irradiation system measurement, it ensures accurate recording and analysis of power station node data, improves operation and maintenance efficiency and power station performance. The whole machine is equipped with an irradiation system, which can measure the accurate real-time power generation efficiency at each node of the power station and automatically generate a PR value in the system.
Test subjects:
String inverter Central inverter PR System efficiency test Combiner box test
Real-time voltage | Real-time current | Power monitoring | Power generation record | AC/DC | Inverter conversion efficiency |
Irradiance monitoring | Temperature monitoring | Environmental collection and recording | PR value calculation | Power factor | Irradiance monitoring |
Performance characteristics:
1. Network communication function, which can realize remote synchronous test control.
2. Obtain the real-time conversion efficiency of the photovoltaic array through the calculation of the accumulated power generation and the measurement of the accumulated irradiance.
3. Timely detection of photovoltaic array faults, providing reliable fault diagnosis methods.
4. It can be used for long-term fixed-site monitoring, with a high level of protection, suitable for on-site testing of power stations and remote Ethernet monitoring data processing.
Technical Parameters:
DC voltage | Testing range | 0-1500V |
Accuracy | +/-0.5%rdg+/-0.2V | |
AC voltage | Phase voltage testing range | 0-600V |
Accuracy | +/-0.5%rdg+/-0.2V | |
Line voltage testing range | 0-1000V | |
Accuracy | +/-0.5%rdg+/-0.2V | |
DC Current | Testing range | 0.5-150A/0.5-1500A |
Accuracy | Based on current clamp accuracy | |
AC Current | Testing range | 0.5-1500A |
Accuracy | Based on current clamp accuracy | |
Irradiance | Environment Temp. range | -30℃ - 100℃ |
Battery Temp. range | -30℃ - 100℃ | |
Temperature accuracy | +/-1℃ | |
Irradiance range | 0-1800W/㎡ | |
Irradiance accuracy | < +/-3% | |
Power factor | Testing range | 0.2 - 1.0 |
Accuracy | 0.01 | |
Frequency | Testing range | 42.5Hz - 69Hz |
Accuracy | +/-0.2%rdg+/-0.1Hz | |
PR value | Accuracy | <+/-1% |
Testing channels | AC and DC channels | 6 |
Hardware | ||
Host | Wireless transmission distance | 50 meters |
Display screen | 640*480, 6.5-inch LED screen | |
Power supply | Built-in lithium battery/power adapter | |
Battery | 14.8V/4400mAH | |
Battery life | 8 hours | |
Size | 390*300*200mm | |
Weight | 5.8kg | |
Working Temp. | -10℃ - 50℃ | |
Storage Temp. | -20℃ - 60℃ | |
Humidity | 5%-95%RH | |
Irradiation meter | interface | RS232 serial, bluetooth |
Weight | 450g | |
Power supply | 4 AAA batteries | |
Temperature sensor | Standard | Temperature test |
Detection interface | Connection line | MC4 |
Accessory list:
NO. | Name | Specification | Quantity | Unit |
1 | Host | Standard | 1 | set |
2 | AC clamp | 3 in 1 | 1 | batch |
3 | DC clamp | Standard | 3 | batch |
4 | Irradiation Sensor | Standard | 1 | pc |
5 | Voltage test lead | Standard | 6 | rods |
6 | Charger | Standard | 1 | pc |
7 | User manual | Standard | 1 | pc |
8 | Others | Warranty card,certificate of conformity... | 1 | pc |
