Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh
2000 cells per hour (1.8 seconds per cell)

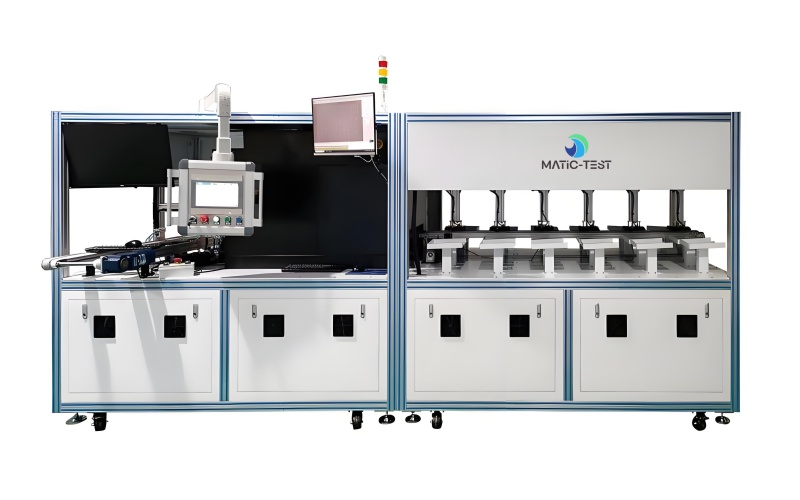

MT-FX2000III Automatic Solar Cells Integrated EL+IV Sorting System
Features:
1. This EL+IV sorting system has an automatic recognition system that can accurately detect and classify battery defects.
2. Eauipped with AAA level solar simulator, it effectively performs high-precision measurements.
3. Using multiple high-capacity material boxes to reduce the number of loading and unloading times.
4. The fragmentation rate is below 0.05%, reducing personnel contact loss and increasing production capacity.
Technical Parameters:
Technical Parameters | |
Equipment Name | Solar Cell Integrated EL+IV Sorting Machine |
Model | MT-FX2000III |
Fragment Percent | <0.05%(Positive A class) |
Camera Pixels | 5 million pixels |
Light Source | A+ class |
Capacity | 2000 - 5000pcs/hr |
Single Flash Time | 10 - 150ms (optional) |
Sensitivity | Can detect crack width less than 0.03mm |
Effective Testing Range | 230*230mm |
Material Sorting Box | 24 sorting boxes |
Power Supply | 220V,50Hz |
Size | 4200 * 1920 * 1970mm |
