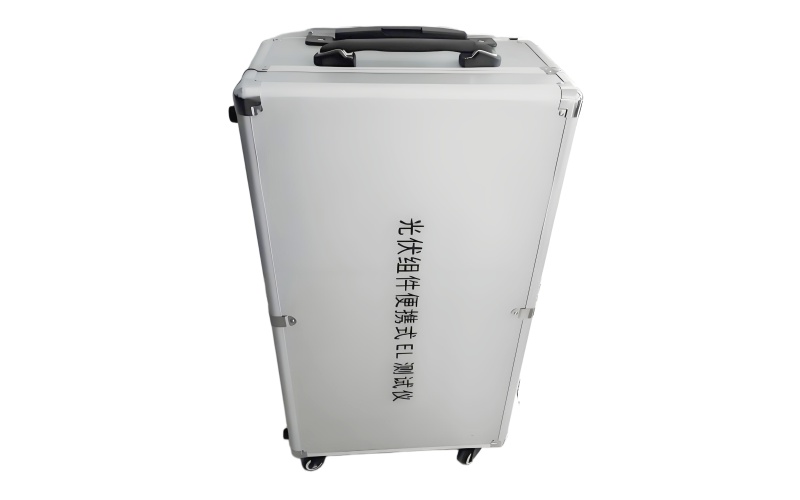

MT-EL001 Solar Modules Electroluminescent HD Portab EL Tester
Description:

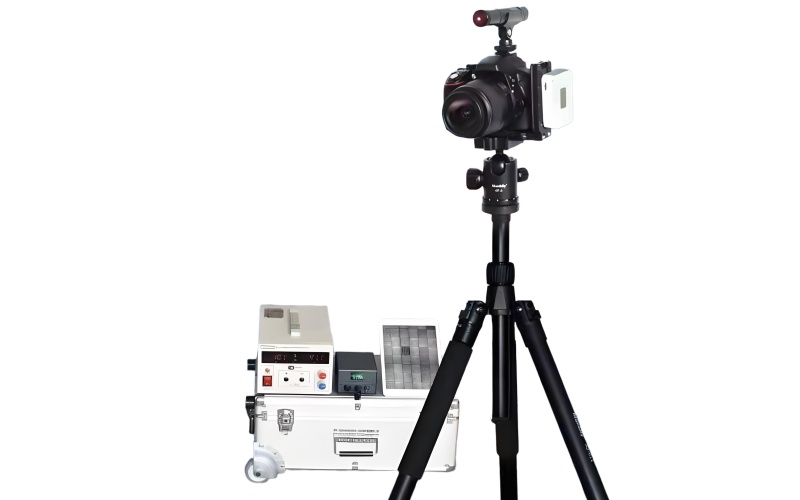

The portable module EL Testeris independently developed by ourselves, which can detect the internal hidden crack defects of solar modules, and ensure the power generation efficiency of photovoltaic modules through detection. The device is simple in structure, convenient in operation, and easy to carry, and is suitable for the on-site detection of mobile users. Exclusive wireless viewfinder remote control adopts the core chip imported from the United States, equipped with multi platform app, which can remotely control camera aperture, shutter, ISO, photometry, white balance and other parameters. It is an exclusive mobile detection equipment for detecting solar power station components and incoming solar panels. With 24 million effective pixels, it can better identify the internal cracks and other defects of the analysis component. The test is more convenient. The anti infrared darkroom tent detection under sunlight, and the direct tripod detection of photovoltaic modules and modules installed on the bracket without sunlight.
Technical Parameters:
Portable Solar Module EL Tester | |
Spectral matching: | The range meets the spectral irradiance distribution requirements of IEC60904-9 |
Imaging system resolution: | 24 million pixels 6000 x 4000 |
Detection cycle: | 3-6s |
Exposure time: | 1-60S |
Judging defect type: | Hidden crack / fragment / low efficiency chip / sintered reticulation / material defect / black core / broken grid / black edge |
System test: | Assembly support / camera support of Avenue darkroom |
Imaging system: | Nikon |
Processor: | EXPEED 4 |
El image processing: | Local enlarge image, cut gray rotate Built in wireless operation transmission module |
Light sensitivity: | 100-25600 |
Vignetting compensation: | yes |
Distortion correction: | yes |
Chip size: | 23.5*15.6 |
Darkroom size: | 2400 * 2200 * 1400 |
Physical resolution (1000*2000 components): | 0.33mm/pixel |
Spatial resolution (1000*2000 components): | 0.5mm in the middle, 0.8mm at the edge |
Auto focus / fast imaging transmission: | Dual intelligent control and transmission within 150m range of external remote wireless WiFi module |
Darkroom system: | Can prevent infrared darkroom tent, 100% infrared shielding, build faster power supply, mobile power supply can be matched with extension line, remote wireless control 0 ~ 100V 0 ~ 10A DC regulated power supply can detect two 300W components at the same time (optional with corresponding power supply, up to 20 components can be powered on at the same time) It is specially used for detecting components on the panorama bracket, and can simultaneously image and detect multiple components |
Power on mode : | universal socket connector power on |
Data transfer: | USB2.0 |
Working environment : | -30 ~ 45 ℃, external power on environment AC 220 V |
Power supply: | 110V or 220V for option |
