Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH

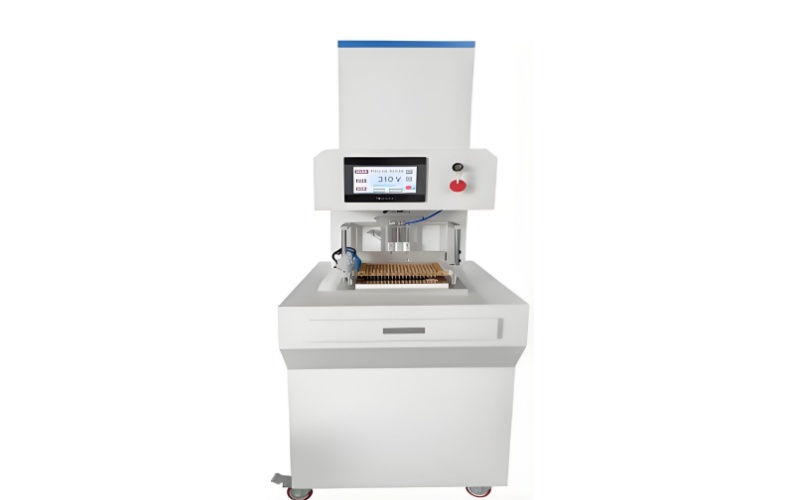

MT-CE1000 Individual Solar Cell Sorting Machine
Application:
Used to test the electrical performance of Mono-Si or Poly-si solar cell pieces and record the results in files.
Features:
1. A grade spectrum
2. A grade unevenness degree of irradiance
3. Four-line measure, 14-bit 4-channel high speed synchronous acquisition card
4. 10 parameters display and Measurement Parameter display in Tabulation and Graphic way.
5. Pneumatic and buffering contact
6. Temperature automatically compensation
7. Voice counts off and prompts, Counting prompt of flash
8. 24hours Continuous work
Technical Parameters:
Test Size: | 210X210mm |
Test rang: | 0W-16W |
Operation panel: | Touch-screen control TK6070IH |
Control system: | Siemens PLC |
Lamp Spectrum: | In line with IEC60904-9 and JISC8933 ( A Grade) |
Light Intensity: | 100mW/cm2 (continuous adjustable range 20-120W/cm2 |
Light intensity non-uniformity: | ≤ ± 2% （ ≤ ±1%） |
Instability degree of irradiation: | ≤ ±2% （ ≤ ± 1%） |
Test result consistency: | ≤ ± 1% （ 0.5%） |
Test error of electrical properties: | ≤1% （ 1%） |
Single flash time: | 10-20ms 10-60ms |
Effective test range: | 210X210mm(0.1-15W) |
Measuring voltage: | 0 - 1V (resolution 1mV) |
Measuring current: | 0 - 20A (resolution 1mA) |
Test parameters: | Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH |
Power demand: | 220V/50HZ/2KVA |
Package Measurement: | 700X800X180 CM |
Gross Weight: | 158KG |
