Long pulse width 10-150ms adjustable
Meets IEC60904-9 requirements (A+ class or A+A+A+ for option)
Four line measurement
8000 data acquisition points
10 parameters displays

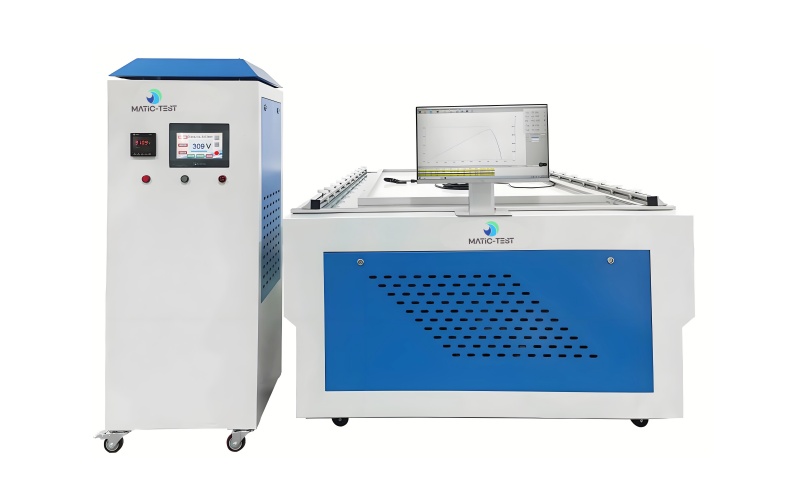

A+A+A+ Long Pulse Solar Panel IV Tester Solar Flasher
MT-LMC5000
Features:
1. Long pulse width 10-150ms, adjustable flash pulse.
2. The closed optical path design ensures long-term stable operation of the equipment and better adaptability to different testing environments.
3.Our solar flasher uses imported pulse xenon lamps to ensure the stability of the test light source.

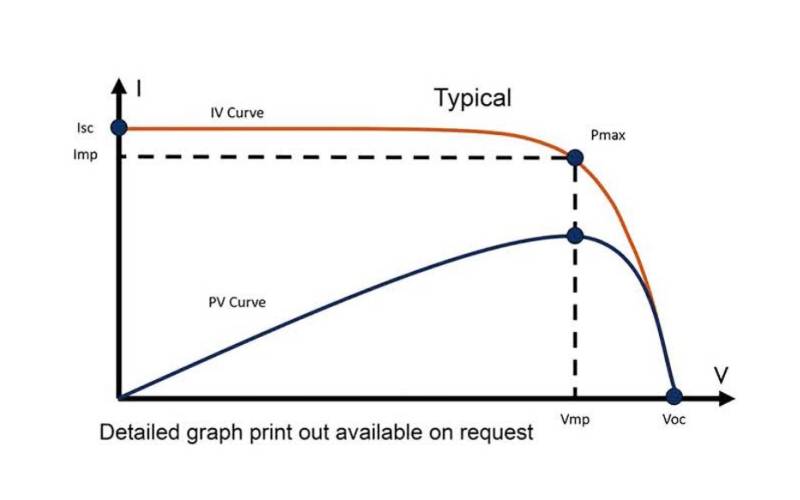

4. Four line measurement, 16 bit 4-channel high-speed synchronous acquisition card, 8000 data acquisition points, 10 parameters displays, and tabular and graphical display of measurement parameters.
Technical Parameters:
Technical Parameters | |
Model | MT-LMC5000 |
Name | A+A+A+ Long Pulse Solar Panel IV Tester Solar Flasher |
Lamp spectrum | Meets IEC60904-9 requirements (A+ class or A+A+A+ for option) |
Light intensity | 20 ~ 120mW/cm2(adjustable) |
Light intensity non-uniformity | <±1% A+ |
Instability degree of irradiation | <±0.5% A+ |
Test result consistency | <±0.5% |
Test error of electrical properties | <±1% |
Single flash time | 10~150ms(Optional) |
Effective test range | 2600*1600MM |
Power Supply | 220V 50HZ |
Size | 2900x1770x1065MM |
